1550nm high power Optical amplifier TOA1000F II

TOA1000F II series optical amplifier for CATV, is designed in accordance with GY / T 184-2002 "cable television system analog optical amplifier technical requirements and measurement methods" standard. It has...

Current position：HOME > HFC

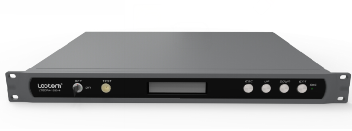

1550nm high power Optical amplifier TOA1000F II

Overview        TOA1000F II series optical amplifier for CATV, is designed in accordance with GY / T 184-2002 "cable television system analog optical amplifier technical requirements and measurement methods" standard. It has low noise, high gain, structural optimization, high reliability and other characteristics. This optical amplifier is used in optical fiber transmission systems of wavelength 1550nm working window. The Built-in microprocessor can monitor the pump working status and input / output optical power and other parameters in real-time. When the optical amplifier is mal-functioning, the corresponding alarm information will be output. When a serious alarm (including the input optical signal is too low or no optical signal is inputted), the pump laser is automatically turned off to protect the optical amplifier. This Equipment has small size, high reliability, easy to operate, support the Chinese interface, use international standard network management standard protocol, directly monitor the status and fault diagnosis through the Ethernet. Technical Specifications

Item

Unit

Parameters

Remarks

Minimum

Typical value

Maximum

Working wavelength

nm

1530

1550

1565

input power (optional)

dBm

-3

+10

＜-6 or ＞+10 turn off

-10

+10

＜-10 or ＞+10 turn off

Output total power

dBm

10

29

Noise figure

dB

5.0(@Pin=0dBm)

Input isolation

dB

30

Output isolation

dB

30

Output pump leaks

dBm

-30

Input pump leaks

dB

60

Output return loss

dB

60

Polarization

dB

0.5

Operating

℃

0

50

Operating humidity

%

5 95
Storage temperature

℃

-40

85

Power consumption

W

24

Operating Voltage

V

～220/-48

Dimension

mm³

483×348×44
